DDK-LED SLS

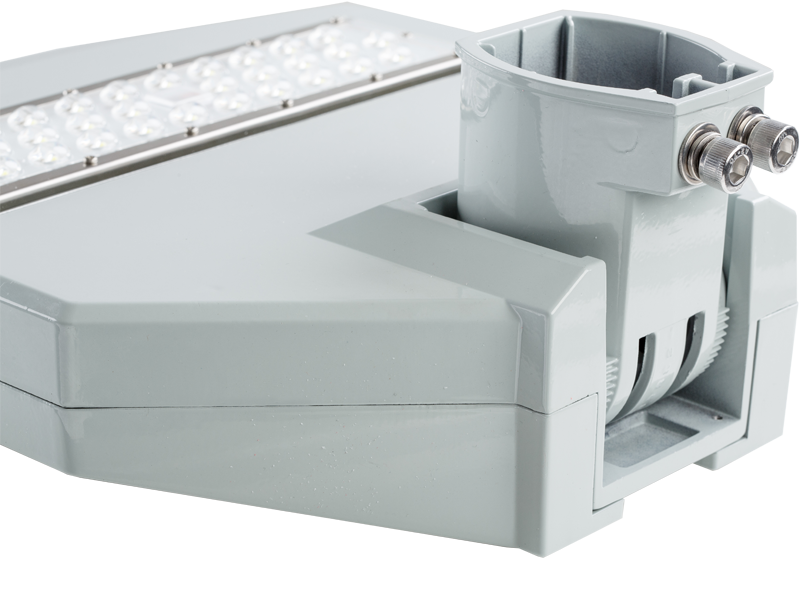

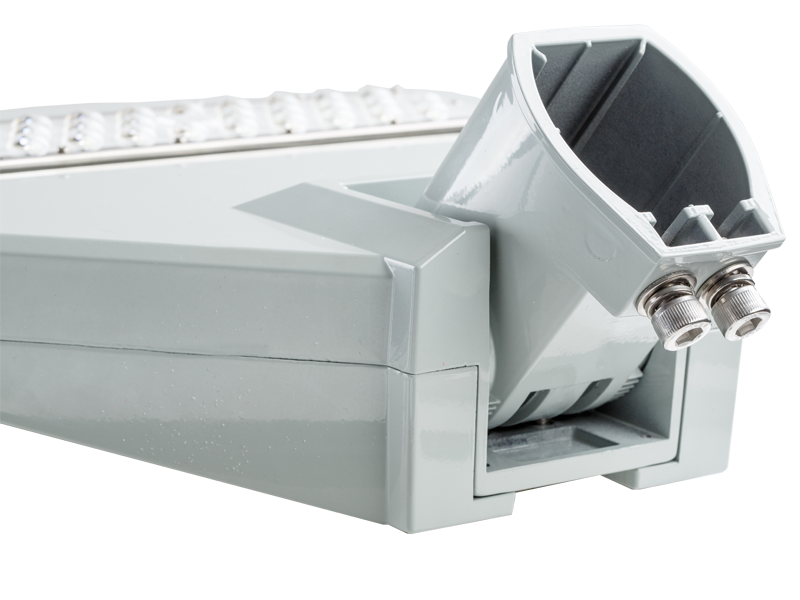

  • Work Image

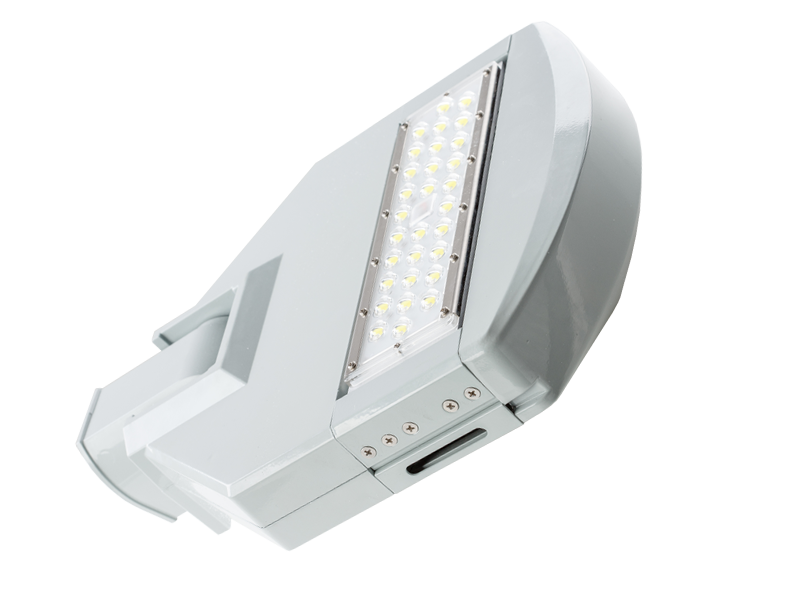

  • Work Image

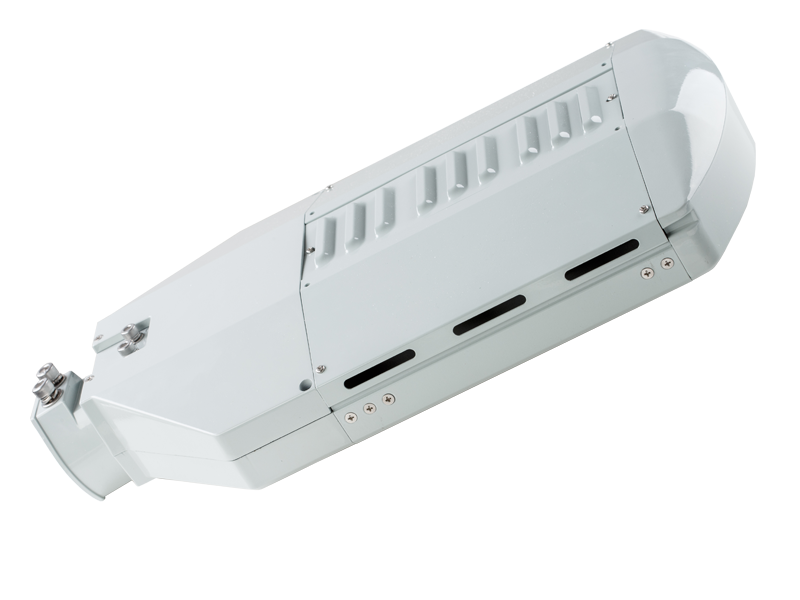

  • Work Image

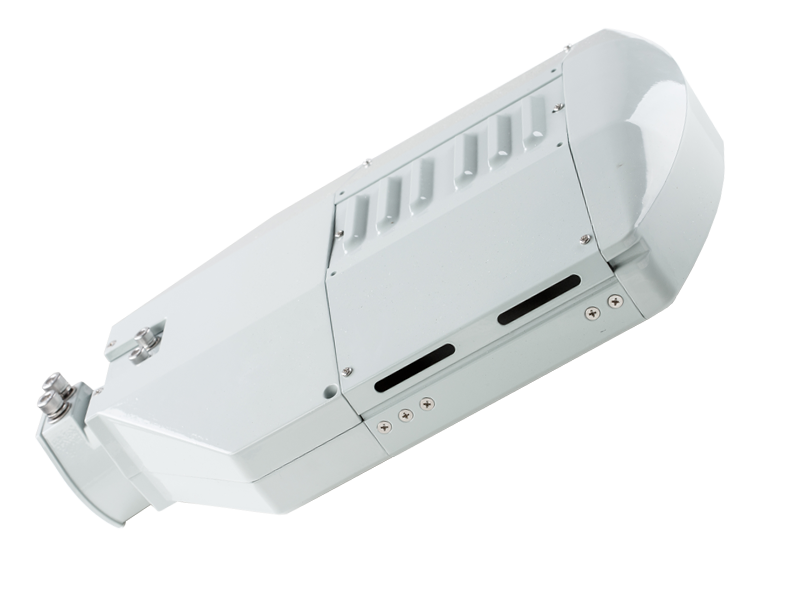

  • Work Image

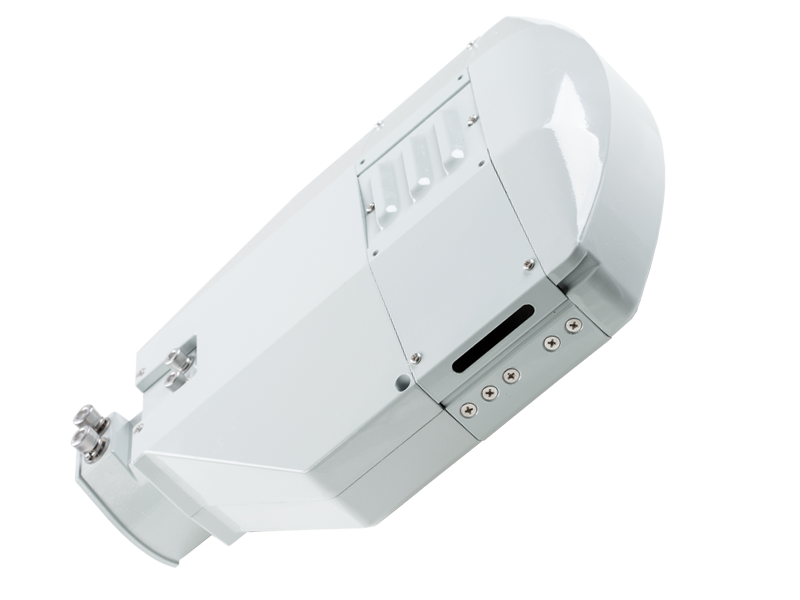

  • Work Image

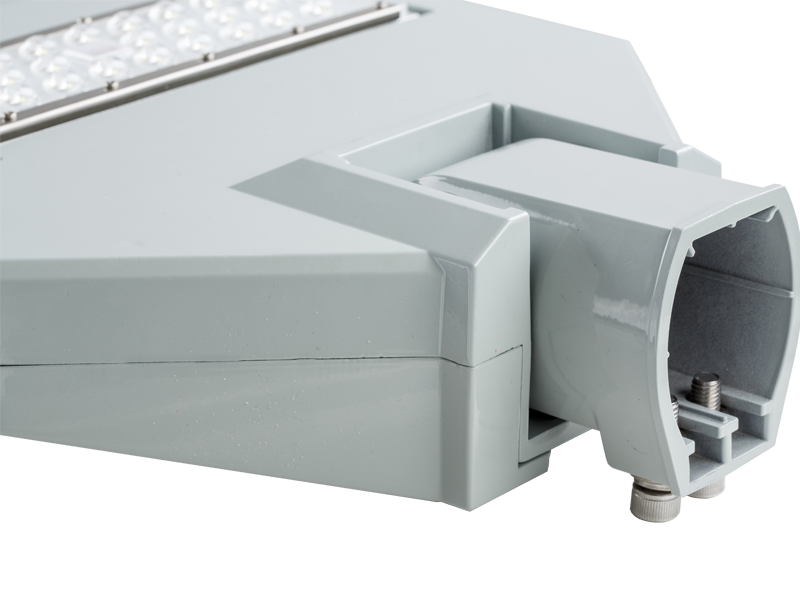

  • Work Image

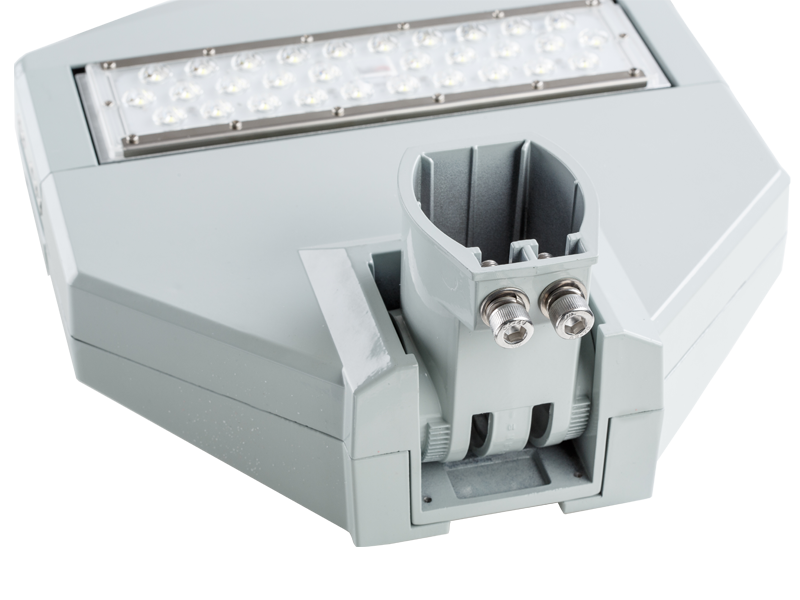

  • Work Image

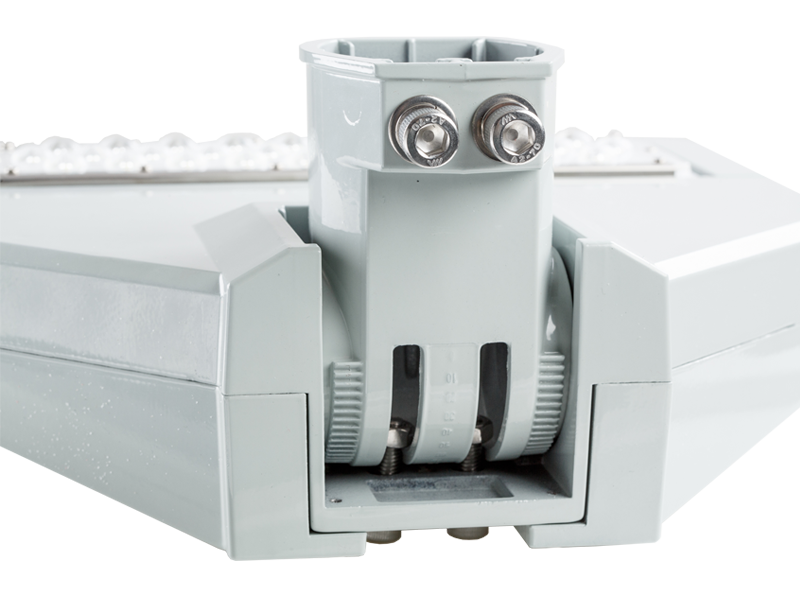

  • Work Image
  • Work Image
  • Work Image
  • Work Image
Basic parameters
  • Light Source
  • IP Rating
  • CRI (Ra>)
  • Beam angle °
  • Luminous Efficiency
  • Warranty (Year)
  • Service Lifetime (hrs)
  • Color temperature
  • Colour
  • Material
  • LED light source
  • Optics
  • Driver
  • Operating Temp. °C
  • Input Voltage
  • Certification
  • Photometric test
  • Photometric Lab
  • LED
  • IP66
  • 70
  • 152x75°
  • 125 (lm/W)
  • 5
  • > 80 000
  • (CCT) 5000-5500 K
  • Aluminium / Silver
  • Aluminium
  • Bridgelux LED
  • 30W/45W LED modules
  • DDK-LED
  • -20/+60
  • AC90~305V ; 50-60Hz
  • CE, RoHS
  • acc. STN EN 13032
  • Skúšobňa FEI STU, Ilkovičova 3, BA
DDK-LED FL
features

Full aluminium
Energy class A+
RAL color on request
Poletop / Wall mounted
Fully adjustable joint holder
Durable, long lifetime up to 80,000 hours
3rd generation 30W, 45W LED modules
High Luminous efficiency up to 125lm/W
No UV or IR radiation, no mercury pollution
Waterproof and dustproof due to IP66, no maintenance
98% light transmission guaranteed by using exclusive lenses

applications

Streets
roads
paths
parking spaces
billboards
highways
railway tunnels
squares
bridges

used in projects

KFTS
complete supply of LED luminaires

Maccaferri
complete supply of LED luminaires
