DDK-LED grill panel light

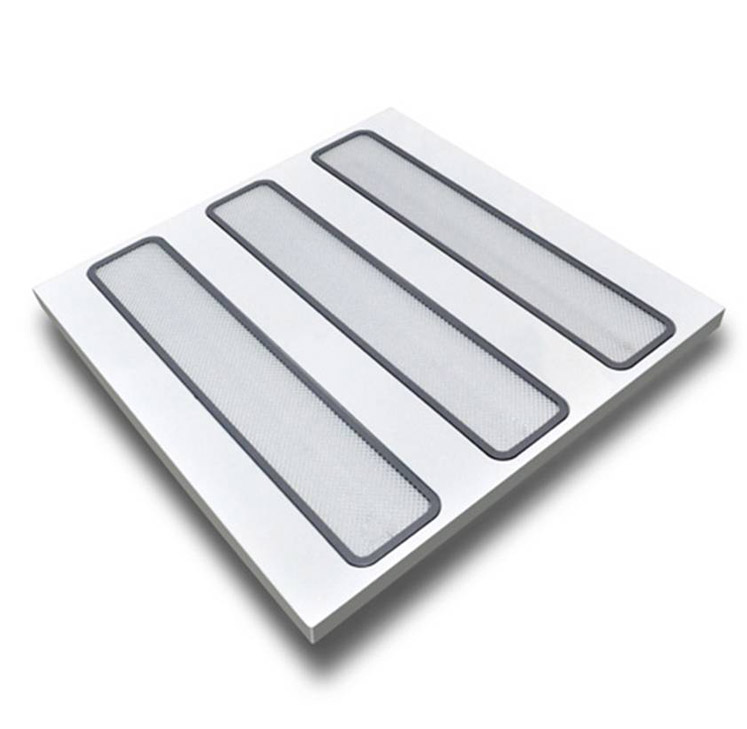

  • Work Image

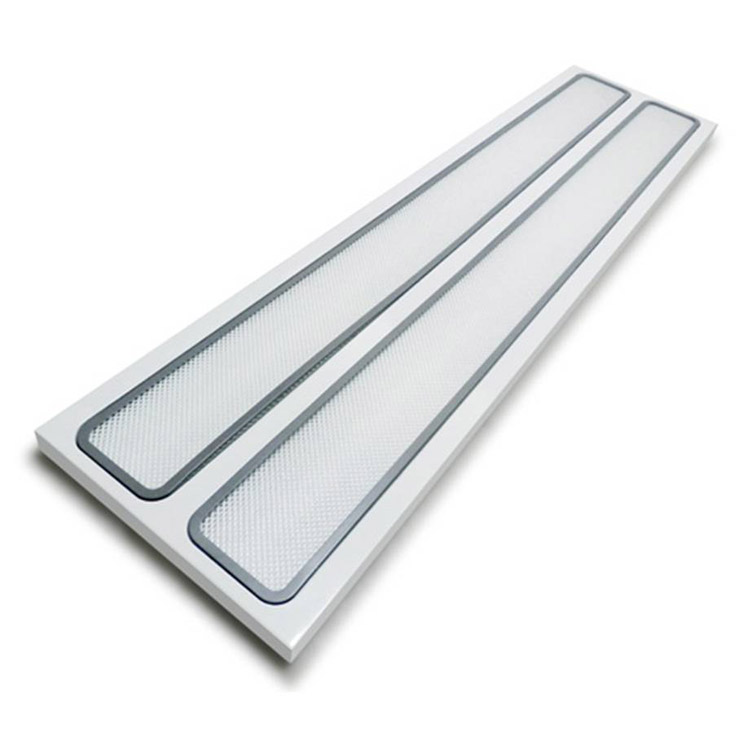

  • Work Image

DDK-LED grill panel light

download documents

DATASHEET (PDF)

IES / LTD FILES

Basic parameters
  • Light Source
  • IP Rating
  • CRI (Ra>)
  • Beam angle
  • UGR
  • Warranty (Year)
  • Service Lifetime
  • Color temperature
  • Frame colour
  • Material
  • Diffusor
  • SMD LED
  • Operating Temp. °C
  • Input Voltage
  • Certification
  • Photometric test
  • Photometric Lab.
  • LED
  • IP 44
  • 80
  • 120°
  • < 19
  • 3
  • > 80 000 hrs
  • 3000 – 6000 K
  • Aluminium/silver; White RAL 9016
  • Aluminium Alloy
  • Prismatic / Frosted
  • Epistar
  • -25/+45
  • 90-264 VAC/90-305 VAC/180-295 VAC ; 50-60Hz
  • CE, RoHS
  • acc.STN EN 13032
  • Skúšobňa FEI STU, Ilkovičova 3, BA
DDK-LED FL
features

Energy class A+
Ies/ldt on request
Regular, dimmable, DALI
50% less energy consumption
No UV flickering, Instant on/off
UGR < 19 for office applications
Supplied complete with accessories
External high PF constant current LED driver
Customized size, frame color, power consumption
Recessed , recessed with spring & suspended mounting

applications

offices
boutiques
receptions
shops
showrooms
entrance halls
corridors

used in projects

DDK-LED
Energy saving 56% , Return on investment 3 years
